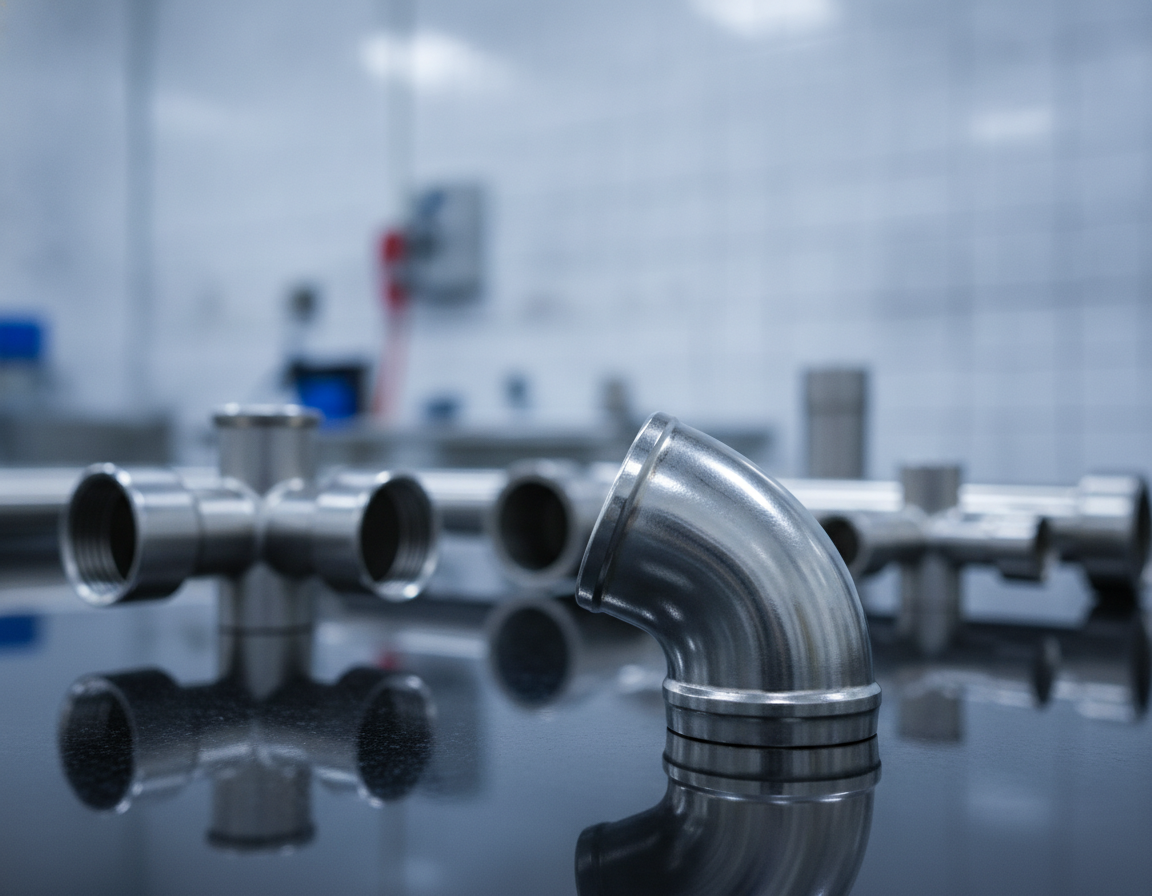

Across many industries, stainless steel sanitary pipe fittings are critical for keeping process systems clean. Components such as ferrules, clamps, sanitary valves, and fittings are designed to maintain clean fluid paths. They help minimize contamination risks and make cleaning easier.
Sanitary Hose Fittings
The choice of Hygienic Fittings and Ss Sanitary Fittings directly impacts product safety, system uptime, and adherence to regulations. The material grade, surface finish, and compatibility of connections are key factors. They influence the ease with which a system can be validated and maintained.
Reliable suppliers and detailed catalogs are vital for operations teams to select the right parts. Brands like CSI and distributors such as Installation Parts Supply provide essential information. They share catalog listings, lead times, and customer reviews to guide purchasing decisions for Sanitary Valves And Fittings.
Key Takeaways
- Stainless Steel Sanitary Pipe Fittings support contamination control in clean process systems.
- Material grade and surface finish affect cleanability and corrosion resistance.
- Hygienic Fittings compatibility limits downtime during maintenance and upgrades.
- Supplier catalogs and reviews from CSI and Installation Parts Supply support reliable sourcing.
- Proper selection of Sanitary Valves And Fittings supports regulatory compliance and product quality.
Overview Of Sanitary Pipe Fittings And Hygienic Fittings For Clean Systems
Sanitary systems rely on components designed for safety and efficiency. A sanitary fitting should feature smooth surfaces, tight seals, and accessible cleaning points. These features are critical for preventing contamination and supporting clean-in-place and sterilize-in-place routines.
Sanitary Fittings Definition And Purpose
Sanitary fittings, also known as hygienic fittings, provide crevice-free connections. This reduces bacterial growth, maintaining product purity during transfer and processing. Their design enables faster cleaning while reducing cross-contamination risk.
Where Hygienic Fittings Are Used
Food processors rely on hygienic fittings to adhere to safety standards and prevent spoilage. Beverage manufacturers use these fittings to protect flavor, clarity, and shelf life. Pharmaceutical plants select fittings that meet strict regulatory requirements.
Biotech facilities need precise sanitary connections for cell culture and fermentation. These industries value traceability, repeatable cleaning, and material compatibility.
Why Stainless Steel Is Used In Sanitary Applications
Stainless steel is favored for its corrosion resistance, mechanical strength, and cleanability. Grades like 304 and 316L withstand chemicals and high temperatures. They also allow surface finishes such as electropolishing and low Ra values.
Stainless components limit bacterial growth and extend service life under aggressive cleaning. Tri Clover Sanitary Fittings and other standardized interfaces improve assembly, inspection, and maintenance in hygienic systems.
Guide To Stainless Steel Sanitary Pipe Fittings
Stainless steel sanitary pipe fittings are essential in modern clean systems for food, beverage, and pharmaceutical industries. Choosing the right material, component type, and surface finish helps reduce contamination risk and makes cleaning easier. This guide will review common grades, typical component families, and finish options for hygienic performance.
Common Materials And Grades Used
Type 304 stainless steel is recognized for its corrosion resistance and mechanical strength, making it suitable for general processing lines. It is commonly used for tanks, structural supports, and areas where product-contact risk is lower.
Type 316L provides higher resistance to chloride pitting and crevice corrosion. Pharmaceutical manufacturers often choose 316L for wetted parts because its low carbon content helps reduce sensitization during welding.
Matching stainless grades across components helps maintain corrosion resistance and reduce galvanic issues at connections. Specifying 304 or 316L early in design helps control procurement of SS Sanitary Fittings and related parts.
Common Sanitary Fitting Types And Their Roles
Ferrules function as the basic connection points for butt-weld and weld-in assemblies. They are typically available in 304 or 316L with polished internal diameters to match process piping requirements.
Two-piece clamps, often called Tri-Clamp or Tri-Clover style clamps, allow quick assembly and disassembly for cleaning. Couplings and sanitary weld fittings help create smooth lines and weld-ready connections.
Sanitary Hose Fittings and Sanitary Weld Fittings join flexible lines and permanent pipe runs. Sanitary Valves And Fittings control flow while maintaining cleanable contours. Designing a system with compatible SS Sanitary Fittings minimizes downtime and leak risks.
Surface Finish Importance For Cleanability
Surface roughness changes how residues adhere. A 32RA internal finish is a common spec that matches cost and cleanability for most food and beverage applications.
Electropolishing further smooths the stainless surface and improves passivity. This treatment helps limit microbial harborage and improves corrosion resistance in aggressive environments.
Specifying consistent finishes across ferrules, clamps, valves, and weld fittings ensures hygienic integrity. When parts share matching 32RA or electropolished surfaces, cleaning validation is easier.
| Part | Common Material | Typical Finish | Primary Use |
|---|---|---|---|
| Ferrules butt weld / weld-in | 304 / 316L stainless | 32RA ID/OD | Pipe-end transitions and welded joints |
| Two-piece clamps Tri-Clamp | 316L for demanding use | Polished or electropolished finish | Quick-release sanitary connections |
| Sanitary couplings and weld fittings | 304 and 316L stainless options | Standard 32RA or electropolished | Permanent connections, elbows, and tees |
| Sanitary flexible-line fittings | 316L commonly used | Electropolished where product contact occurs | Hose-to-pipe transfer connections |
| Sanitary valves and process fittings | 316L for wetted parts | Smooth polished flow paths | Cleanable flow control in process lines |
Tri Clover Fittings, Tri-Clamp Fittings Catalog, And Triclover Fitting Options
Tri Clover Pipe Fittings follow strict dimensional standards that support cross-manufacturer compatibility. Standards such as DIN 32676 and DIN 11864-3A define ferrule-face geometry and clamp interfaces. This supports sanitary lines remain leak-free and easy to maintain. They also simplify Triclover Fittings selection for food, beverage, and pharmaceutical applications.
When perusing a Tri-Clamp Fittings Catalog, review size ranges, material specifications, and surface finishes. Catalogs often list two-piece clamps from 0.25″ to 4″, including single-pin options and matching gaskets. Ferrules are usually shown with length, material, and finish details, with 304 and 316L 32RA options common for improved cleanability.
Important catalog items include clamps, ferrules, and gasket sets sized by inches or DN. Prices for small two-piece clamps start under ten dollars, while larger clamps are in the low double digits. Each Triclover Fitting entry should show OAL, ID/OD finish, and compatible gasket material. This helps ensure the correct part is selected when ordering.
High-pressure applications may require double-bolt or heavy-duty two-piece clamps. These clamps feature a 304 stainless body with brass nuts, balancing strength and corrosion resistance. For critical process lines, select high-pressure clamps based on rated clamp force and confirm compatibility with existing Tri Clover Fittings to avoid mismatches.
The choice of material influences both longevity and cleaning performance. 316L ferrules provide better chloride resistance in harsh or chemically aggressive environments. Ensure the Tri-Clamp Fittings Catalog lists both ferrule metallurgy and clamp construction. This allows for the selection of Tri Clover Pipe Fittings based on application needs and service conditions.
Spec sheets should list clamp size charts, ferrule dimensions, and part numbers to streamline procurement. A well-organized catalog facilitates quick replacement of Triclover Fittings, minimizing downtime. Choose suppliers that publish detailed specifications for each Tri Clover Fitting so interchangeability across brands can be confirmed.
Sanitary Connections And Compatibility With CSI Sanitary Fittings
Sanitary connections are vital for linking pipes, valves, and equipment in clean systems. The right joint type is critical for maintaining hygiene and efficiency. This section reviews common connection styles, brand interchangeability, and supplier reliability feedback.
There are several connection types, including clamp connections like Tri-Clamp, butt-weld and socket-weld fittings, threaded links, and sanitary hose fittings. Each style has different benefits for assembly speed, cleanability, and leak risk.
Clamp connections are popular because they assemble quickly and can be disassembled easily for cleaning. Welded joints provide the smoothest internal profile for CIP and SIP routines. Threaded fittings are suitable for low-risk applications where product contact is not a concern. Sanitary hose fittings require matched ferrules and a secure Sanitary Coupling to prevent leaks.
Brand compatibility matters when components from multiple suppliers are mixed. CSI Sanitary Fittings and Csi Fittings align with common standards like Tri-Clamp and DIN, making them generally interchangeable with other manufacturers. Steel & O’Brien publishes specification sheets that help confirm compatibility with major Tri-Clamp systems when the standards match.
To confirm compatibility, match nominal size, sealing face, material grade, and surface finish. Verify standards such as DIN 32676 and DIN 11864 on datasheets. Mismatched finishes or grades can cause corrosion, leakage, or product-residue traps.
Customer reviews can provide practical insight into supplier reliability and fulfillment speed. Reviews for CSI show consistent part quality and quick shipping, with some buyers experiencing next-day delivery on stock items. Others praise the responsive communication after order inquiries.
When comparing suppliers, review lead times, documented quality, return policies, and after-sale support. Reliable shipping and clear spec sheets minimize downtime and avoid costly returns when purchasing Sanitary Connections, CSI Sanitary Fittings, or components from Steel & O’Brien.
| Sanitary Connection | Best Use | Cleanability | Cross-Brand Notes |
|---|---|---|---|
| Tri-Clamp clamp connection | Lines requiring fast access for cleaning | High cleanability with a removable gasketed seal | High if size and sealing face match; CSI fittings usually fit standard systems |
| Welded sanitary connections | Fixed sanitary piping where cleanability is critical | Very high when welded and polished correctly | Cross-brand fit depends on matching standards and dimensions |
| Threaded sanitary-style connection | Low-risk applications away from product contact | Lower cleanability where threads contact process fluids | Use carefully and confirm grade, thread style, and finish |
| Sanitary hose and ferrule connection | Hose transfer service and movable equipment | Good if ferrule and clamp are matched | Compatibility depends on ferrule shape, gasket, and clamp match |
Selection Guide For Sanitary Pipe Fittings Stainless And SS Sanitary Fittings
Selecting the correct sanitary components requires a focused review of size, material, finish, and pressure. This guide guides you match size, material, and finish to your process needs. Use the metrics and checks below to minimize downtime and ensure hygienic performance.
Begin with size and designation. Confirm DN and TC stamping and verify DN TC inch equivalents before ordering. Common catalog mappings include DN20, DN25, DN32, DN40, DN50, DN65, and DN100 matched to 0.25″–4″ Tri-Clamp sizes. Check mating surfaces, gasket groove styles, and flange faces to ensure compatibility.
Material selection is a major part of sanitary fitting specification. For many food and beverage lines, 304 stainless meets strength, cleanability, and cost requirements. For pharmaceutical, chloride-exposed, or aggressive-cleaning processes, choose 316L for better corrosion resistance and weldability. Many suppliers list 316L ferrules and fittings as standard choices for harsh service environments.
Surface finish and gasket choice shape cleanability and seal life. Specify target finishes such as 32RA or electropolished surfaces. Match gasket materials such as EPDM, PTFE, or silicone to temperature, chemical exposure, and product-contact needs. Confirm gasket cross-section, clamp type, and clamp pressure to help prevent leaks.
Review process pressure and clamp type. Standard clamp clamps handle everyday sanitary services. High-pressure applications require reinforced clamps, double-bolt designs, or specialized nuts and hardware. Review catalog pressure ratings and choose clamps rated above operating pressure to provide a safety margin.
Consider Copper Tri Clamp Fittings for niche needs. Copper tri clamp fittings can provide conductivity and antimicrobial benefits in certain systems. Validate compatibility with cleaning agents, product chemistry, and dissimilar metal corrosion risks when pairing copper with stainless lines.
Final verification steps can save money and prevent ordering mistakes. Compare catalog part numbers against DN/TC inch equivalents, confirm grade markings, and request mill test reports when needed. Keep records of gasket type, finish specification, clamp pressure, and part numbers to streamline spare-parts ordering and maintenance.
Sanitary Coupling And Sanitary Weld Fittings Installation, Maintenance, And Best Practices
Ensuring the cleanliness and reliability of sanitary connections is vital. Follow specific steps for assembling tri-clamp assemblies and welded joints to avoid leaks and contamination. Detailed records of materials, finishes, torque values, and maintenance are important for traceability and audits.
Correct assembly steps
Start by cleaning ferrule faces thoroughly and checking gaskets for cuts, deformation, or other defects. Place the gasket between the ferrule faces and make sure the sealing surfaces are properly aligned. Next, install the clamp, hand-tighten it, and then apply specified torque using a calibrated wrench. For high-pressure applications, use double-bolt clamps with suitable hardware and follow recommended torque values to avoid over-compression.
Sanitary Weld Fittings guidance
When working with weld joints, prepare the tube ends to the specified Ra finish before welding. Use inert gas for purging to prevent oxidation on 316L stainless steel. After welding, inspect the weld contour and smoothness. If needed, rework rough spots through controlled grinding and electropolishing to restore low roughness and maintain hygiene.
Regular sanitary maintenance
Run CIP and SIP cycles according to process requirements. Regularly inspect ferrule faces, clamps, and gaskets after thermal cycles and scheduled cleanings. Replace gaskets when they show hardening, extrusion, cuts, or permanent deformation. Always verify clamp torque and alignment after each maintenance activity.
Troubleshooting frequent sanitary fitting issues
When leaks appear, first check clamp seating, gasket condition, and ferrule alignment. Misaligned clamps can cause uneven compression and create leaks. To correct this, loosen the assembly, realign it, and retighten to the specified torque. For gasket extrusion or failure, ensure the correct durometer and material are used, and confirm the groove dimensions match the ferrule specifications.
How to address surface damage
Surface damage such as scratches, pitting, or crevice corrosion can hold microorganisms. Minor scratches can be polished out and then electropolished to restore the Ra levels. Components should be replaced if pitting penetrates the surface or if polishing would remove too much material.
Recordkeeping and documentation
Maintain detailed records of material grades, surface finishes, gasket materials, clamp models, torque values, and service dates. Keep calibration records for torque tools, welding equipment, and inspection instruments. Accurate records support compliance, audits, validation, and faster troubleshooting.
| Service Task | Timing | Main Step | Service Notes |
|---|---|---|---|
| Clamp torque verification | After assembly, then monthly | Verify with a calibrated torque wrench | Reference the correct torque table for each coupling size |
| Gasket inspection/replacement | Every 3 to 12 months or when failure occurs | Inspect for cuts, hardening, extrusion | Replace only with compatible gasket material |
| Surface finish check | Quarterly or after welding | Check Ra values and look for surface defects | Electropolish if Ra exceeds spec for hygienic areas |
| Weld inspection | After installation and during annual review | Inspect for undercut, porosity, profile | Repair, polish, and revalidate Sanitary Weld Fittings as required |
| CIP and SIP validation | According to each cleaning or sterilization cycle | Record process parameters during each cycle | Document results for regulatory traceability |
Where To Buy: Sanitary Fittings Catalogs, CSI Fittings, And Installation Parts Supply
Starting with a detailed catalogue review is essential. Look for a Sanitary Fittings Catalog that lists material grade, surface finish, dimensions, and pressure rating. It should also mention standards like DIN 32676 or DIN 11864-3A. Before ordering, confirm item codes, stock status, lead times, and compatibility to avoid delays.
When reviewing a Tri-Clamp Fittings Catalog, compare clamp type, gasket compatibility, dimensional specifications, and material grade. Check whether ferrules and fittings are finished to 32RA, electropolished, or another required specification. A detailed catalog keeps matching gaskets and clamps easier during assembly.
Evaluate Csi Fittings by reading independent reviews, checking supplier lead times, and comparing published specifications. Many buyers report next-day shipping for common parts and responsive customer service on quality questions. Confirm return terms and inspection requirements for precision parts used in tight-tolerance projects.
Use the following example listing to estimate market pricing and compare common stocked sizes. These prices reflect typical catalog-style entries and help set realistic procurement budgets.
| Item | Nominal Size | Grade | Finish | Typical Catalog Price |
|---|---|---|---|---|
| Single-pin two-piece clamp | 0.25″ to 0.75″ | Type 304 stainless steel | Standard | 3.91 USD |
| Single-pin two-piece clamp | 1 inch | 304 | Standard catalog finish | $4.91 |
| Two-piece single-pin clamp | 2″ | Type 304 stainless steel | Standard catalog finish | Approx. $5.99 |
| Two-piece single-pin sanitary clamp | Two-and-a-half-inch size | 304 | Standard finish | Approx. $6.93 |
| Two-piece single-pin clamp | 3″ | Type 304 stainless steel | Standard catalog finish | $7.54 |
| Single-pin two-piece clamp | 4 inch | 304 stainless | Standard finish | $9.16 |
| Ferrule TC | 2″ size, 1.125″ overall length | Type 316L stainless steel | 32RA ID/OD | $4.24 |
| Tri-Clamp ferrule | 2″ — 1.125″ OAL | 304 | 32RA internal and external finish | $4.06 |
| Tri-Clamp ferrule | 3″ | 316L stainless | 32RA ID and OD | $6.15 |
| High-pressure sanitary clamp | 1.5 inch | 316 stainless | Polished sanitary finish | $12.93 |
| Double-bolt high-pressure clamp | 2″ | Type 316 stainless steel | Polished sanitary finish | 14.62 USD |
| High-pressure double-bolt clamp | 3″ | 316 stainless | Polished | $20.26 |
Installation Parts Supply is a U.S.-based supplier for sanitary valves, ferrules, clamps, and related process parts. Use their online listings to check availability, finishes, and exact pricing for specific Tri-Clamp Fittings Catalog items. Review product pages to cross-check pressure ratings and gasket materials before purchase.
When sourcing parts, prioritize catalogs that clearly separate 304 from 316L, state surface finish, and cite applicable standards. A targeted search through a Sanitary Fittings Catalog will speed up procurement and reduce returns on critical process components.
Conclusion
Stainless Steel Sanitary Pipe Fittings are essential for maintaining cleanliness in food, beverage, pharmaceutical, biotech, and other hygienic industries. The choice between 304 and 316L materials, along with surface finishes like 32RA or electropolishing, improves cleanability. These choices can significantly reduce contamination risk. Ensuring Tri Clover Fittings and related parts meet standards such as DIN 32676 is important for tight Sanitary Connections and easier interchangeability.
When choosing fittings, evaluate material grade, surface finish, connection type, and pressure needs. This includes Tri-Clamp, weld, hose, or threaded connections, based on pressure, product contact, and regulatory requirements. High-pressure clamps should be used where necessary. Keeping gaskets, clamps, and ferrules consistent helps prevent leaks and simplifies maintenance. Proper installation and regular cleaning support the lifespan of fittings and ensure compliance with hygiene standards.
Catalogs provide competitive pricing for two-piece clamps, ferrules, and high-pressure options. This helps balance cost, reliability, and availability in procurement decisions. When searching for where to buy sanitary fittings, choose reputable U.S. suppliers. They should list product specifications, finishes, and standards to ensure compatibility with CSI and other branded fittings.
Following these guidelines helps streamline system design, sourcing, and maintenance. Clear specifications, consistent materials, and reliable sources help minimize downtime. This protects product quality in hygienic processing environments.
